The AgroPV TR System is a pilot solution developed under a project co-financed by the National Centre for Research and Development (NCBR). Its parameters may continue to be optimized as part of ongoing field research; depending on the results, further optimization and updates to the design assumptions will follow.

The project titled “Innovative technology for combined crop cultivation and electricity production using photovoltaic solutions” is funded from the state budget by the National Centre for Research and Development under the strategic program “New Technologies in the Field of Energy II.

Power Your Farm With AgriPV TR System

Harvest solar energy, capture rain-water and protect your crops — all with one modular, patent-pending frame.

Datasheet
Contact

Amazing Features

Transparent PV

Adjustable 5–65 % light-transmission modules balance crop shading with solar yield, maximising photosynthesis while producing clean energy overhead.

Smart Water Retention

Soil-moisture probes plus tank-level data let the EMS release exactly the rain-harvested water crops need—combating soil drought automatically.

Integrated EMS

A single open platform supervises power, irrigation and panel washing, and links to batteries, EV chargers or any farm-management ERP.

Farm-Machinery Ready

Up to 4 m ground clearance and 3–30 m row spacing keep tractors, sprayers and harvesters moving freely beneath the array.

Simplicity & Reliability

Few prefabricated parts bolt together on site for a fast, low-risk install—and the streamlined layout makes maintenance effortless.

Crop-Tuned Shading

Dual-slope geometry spreads light evenly through the day, eliminating noon peaks and giving sensitive plants a gentler micro-climate.

Modular Scalability

Add or remove sections row-by-row—grow from pilot plot to multi-hectare farm without design changes or heavy re-tooling.

Innovative Footings

Removable ballast-steel shoes anchor the frame without concrete; they lift out cleanly at end-of-life, leaving soil undisturbed.

Certified Durability

Steel meets Eurocode and ISO 1461/12944; PV modules comply with IEC 61215, 61730 and optional salt-mist / ammonia tests.

Rapid ROI

Combined energy savings, higher crop yields and low installation CAPEX deliver a payback horizon that outperforms separate PV or irrigation.

Low-Carbon Materials

Hot-dip-galvanised steel and recyclable glass-glass modules minimise embedded CO₂ and simplify end-of-life recovery.

Data-Driven Insights

Real-time dashboards and API access turn power, water and climate data into actionable analytics for continuous farm optimisation.

More About AgriPV TR System

Discover how the AgriPV TR System turns unused head-space above your fields into a dual-harvest engine: transparent bifacial panels generate electricity without overshading crops, rain-gutters feed slimline tanks that gravity-charge existing drip lines, and concrete-free ballast feet mean the entire steel frame bolts together quickly, lifts out cleanly at end-of-life, and leaves the soil exactly as you found it—all while a single EMS dashboard synchronises power, water and crop data for measurable gains in yield, savings and sustainability.

1

Plug-In Irrigation

2

Open-Platform EMS

3

Zero-Concrete Footings

4

Crop-Tuned Shading

App Screens

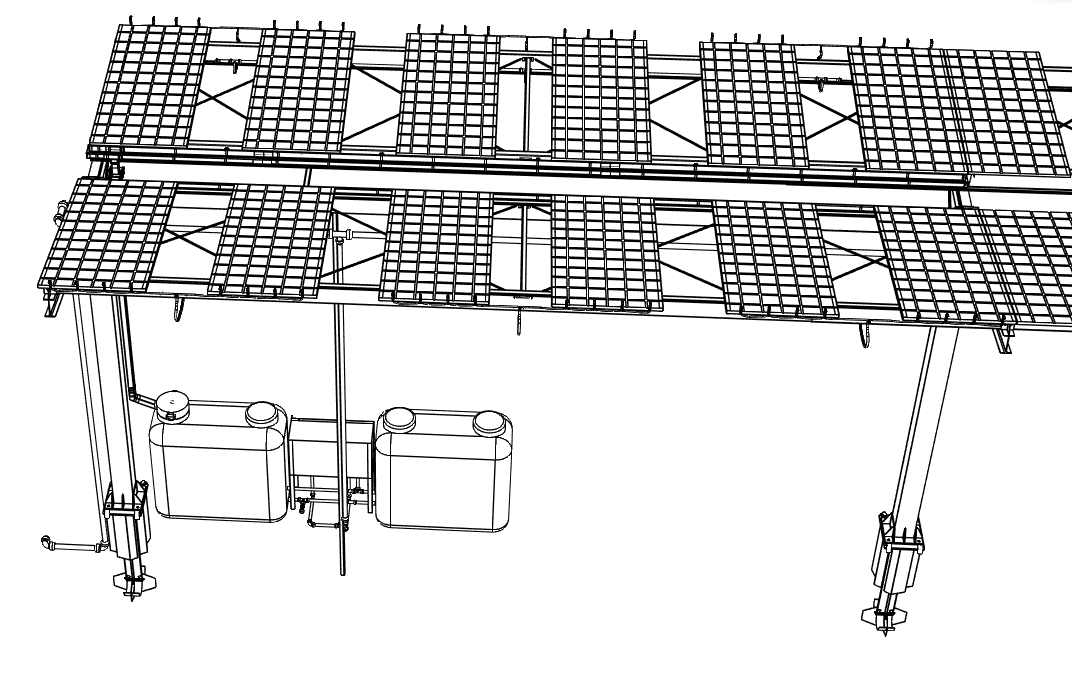

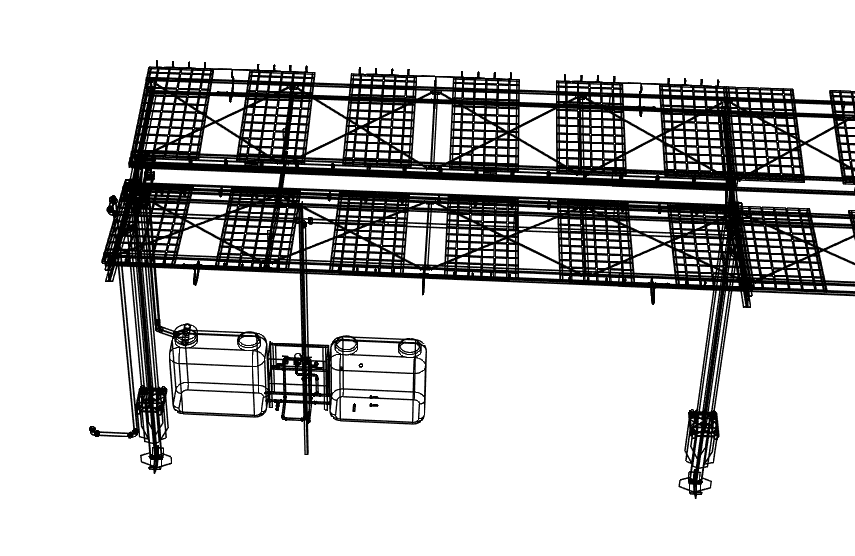

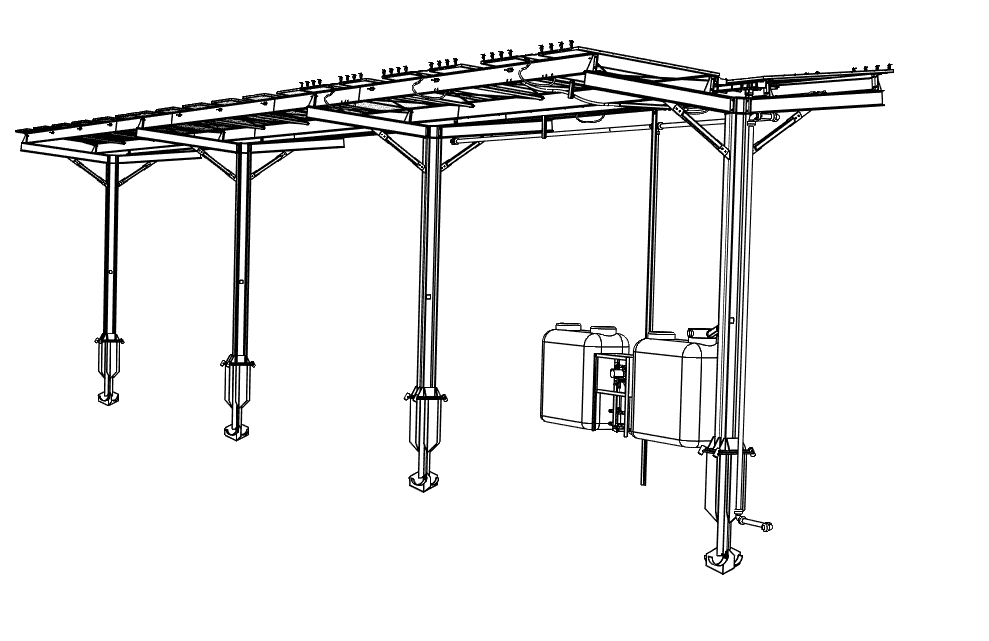

Linear row design, east–west V-roof for balanced power and rain capture, single-column support that widens machinery lanes, and adjustable ballast feet for uneven terrain—four reasons the TR System stands out.

Linear row layout
East–West dual-slope V-roof
Single central column
Terrain-adaptive mounting
